Bore Blasting Drill
Bore Blasting Drill Manufacturers |Bore Blasting Drill Machine in India
Bore Blasting Drill Manufacturers, Suppliers in India, blast hole drilling machine India

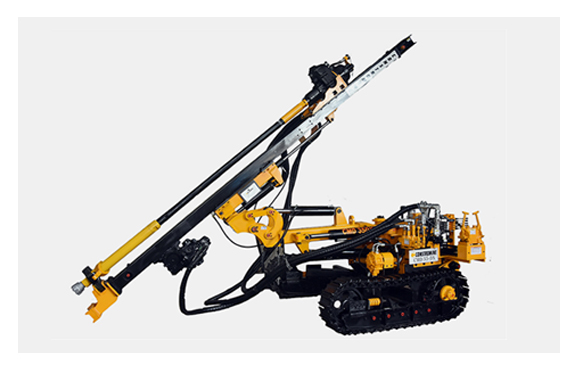

Constromine Equipment Private Limited is a former bore blasting drill manufacturers and suppliers in India, are providing the high quality of bore blasting drilling machine. This machine is used in multiple types of applications such as mining, construction and quarrying to drill the holes into rock where explosives are placed and detonated.
Through this machine, the heavier and larger blocks can crushed into smaller ones. These are installed with powerful tools and new technological sensors as well for simplifying the complex task. Below, we have mentioned its several types, technological advancements, benefits and applications also!
New technological Advancements in the bore blasting drill
The one of the best bore blasting drill machine manufacturers in India, we have added new technological advancements in these machines to give more performance in every industrial sector:
- Automation and Remote Operation: Automation systems track drilling parameters like depth, temperature, pressure, and vibration. This data optimizes drilling operations, predicts potential problems, and improves overall efficiency.
- Improved Sensor Technology: Multiple sensors provide accurate information about subsurface formations. This data helps geologists and engineers make informed decisions about placement and design.
- Improved Drilling Formulations: Advanced drilling fluids improve drilling efficiency and reduce environmental impact. These fluids stabilize borehole walls, cool the drill bit, and remove cuttings effectively.
Technical Specifications of our Bore Blasting Drilling Machine
We have mentioned below a technical sheet of our bore blasting drill machine that gives detailed technical information such as:
| Attribute | Specification |
|---|---|
| Type of Drilling | Rotary Drilling / Percussion Drilling |
| Drilling Diameter Range | 90 mm – 300 mm |
| Drilling Depth Capacity | Up to 100 meters |
| Engine Power | 150 - 400 kW |
| Drill Rig Height (Transport) | 3.5 m |
| Track Width | 2.4 m |
| Travel Speed (Crawler) | 1.5 – 3.5 km/h |
| Rotary Head Torque | 10,000 - 30,000 Nm |
| Maximum Working Pressure | 2000 bar (High-pressure water system) |
| Max Drill Rod Length | 12 meters |
| Feeding System | Hydraulic Mast (Adjustable for angle) |
| Mast Angle Range | 0° to 45° (adjustable) |
| Hammer Type | Hydraulic Percussion Hammer / DTH (Down-The-Hole) Hammer |
| Blasting Agent Delivery | Bulk Explosive Delivery, Emulsion or ANFO |
| Blasting Hole Alignment Accuracy | ± 2% deviation for vertical alignment |
| Drilling Mode | Manual or Fully Automatic |
| Noise Level | 110 dB(A) |
| Vibration Level | ≤ 5 m/s² |
Features and Benefits of using our Bore Blasting Drilling Machine
Being the best bore blasting drill machine suppliers in India, these machines are equipped with new features and gives multiple benefits such as:
- Rotary Head: Uses rotational force to drive the drill bit, enabling efficient penetration into various ground formations. Maintains steady rotation speed for smooth and consistent drilling.
- Hydraulic System: Powers the drilling mechanism with high-pressure fluid, ensuring smooth and controlled operation. Provides consistent force to the rotary head and feed system for enhanced drilling efficiency.
- Feed System: Controls the downward movement of the drill bit for uniform penetration and prevents sudden impacts. Adjusts drilling speed based on ground conditions for optimal performance.
- Dust Suppression System: Minimizes dust emissions during drilling, creating a safer and cleaner working environment. Improves visibility and reduces health hazards caused by airborne dust particles.
- Drill Rod Handling System: Smoothly handles drill rods, facilitating easy loading and unloading. Reduces manual labor and increases drilling efficiency. Enables quick rod changes to maintain continuous operation.
- Operator Cabin: Provides a safe and comfortable workspace with user-friendly controls for monitoring and managing drilling operations. Protects the operator from dust, noise, and harsh environmental conditions.
Applications of our Bore Blasting Drilling Machine
One of the former bore blasting drill machine manufacturers in India, our machine is highly used in various types of applications such as:
- Mining and mineral exploration for resource extraction
- Quarrying and rock excavation for aggregate production
- Construction foundation drilling for building stability
- Oil and gas exploration for energy extraction
- Geothermal energy drilling for renewable power generation
- Water well drilling for underground water access
- Tunnel and underground excavation for infrastructure projects
- Blasting operations in road and highway construction
- Slope stabilization drilling for landslide prevention
- Dams and hydroelectric projects for water control
- Open-pit mining for large-scale mineral extraction
- Marine and offshore drilling for underwater exploration
As a leading bore blasting drill machine manufacturers and suppliers in India, we asConstromine Equipment Private Limited are offering the new and high quality of bore blasting drill machine. This machine is used for drilling the in depth hole and also used for crushing the heavy and large rocks into smaller ones. The use of new technological sensors and equipment helps for giving accurate data and output also. We have used pure form of raw materials in these machines for increasing the durability and gives higher performance. Contact us today for more information!
